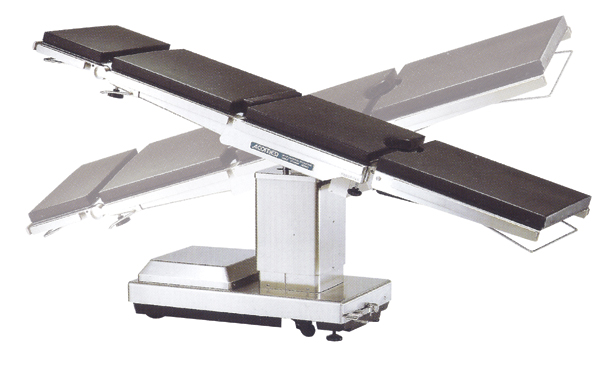

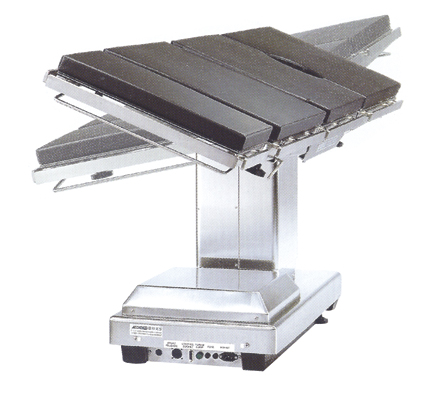

SEMI-AUTO OPERATION TABLE
SEMI-AUTO OPERATION TABLE AT-6800
AT-6800
- Head section operating handle
Back section operating handle
Tilt operating handle
Leg section operating handle
Brake pedal
Controller
- Head section operating handle
- Back section operating handle
- Tilt operating handle
- Leg section operating handle
- Brake pedal
- Controller
By adding AT-6600T2 Orthopedic tractor
Specifications:
Specifications:
- Table top size: 500 x 1975 mm
- Elevation: 690 ~ 1000 mm (electric-hydraulic)
- Trend: +22° ~ -22° (electric-hydraulic)
- Tilt: +22° ~ -22° (mechanical)
- Back section: +65° ~ -30° (air spring)
- Head section: +90° ~ -90° (mechanical)
- Leg section: +15° ~ -100° (air spring)
- Brake (mechanical by foot-pedal)
- Power: AC 110 / 220V. 50 / 60Hz (or by order)
(In addition to above, special-ordered specifications are available)
Standard Accessories:
1 Screen frame ..................................1 set
2 Head section ..................................1 set
3 Arm board ........................................2 pc
4 Leg section .....................................1 set
5 Mattress ...........................................1 set
6 Operating handle ...........................1 pc
7 Controller .........................................1 set
8 Power cable .....................................1 set
Standard Accessories:
1 Screen frame ..................................1 set
2 Head section ..................................1 set
3 Arm board ........................................2 pc
4 Leg section .....................................1 set
5 Mattress ...........................................1 set
6 Operating handle ...........................1 pc
7 Controller .........................................1 set
8 Power cable .....................................1 set
