MULTI-PURPOSE OPERATION TABLE AT-6700

Back

AT-6700

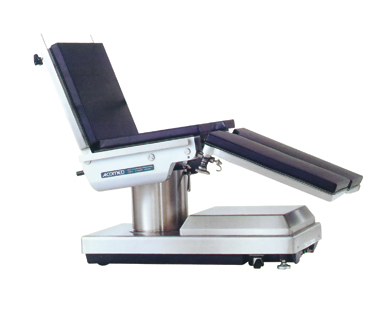

• Option-F (motorized leg section)
  Option-A (pneumatic leg section)
  Option-U (kidney elevator)
  Option-B (battery backup)
  Option-R (auto level)
  Option-G / N / P / NS / PS (S-sliding function)

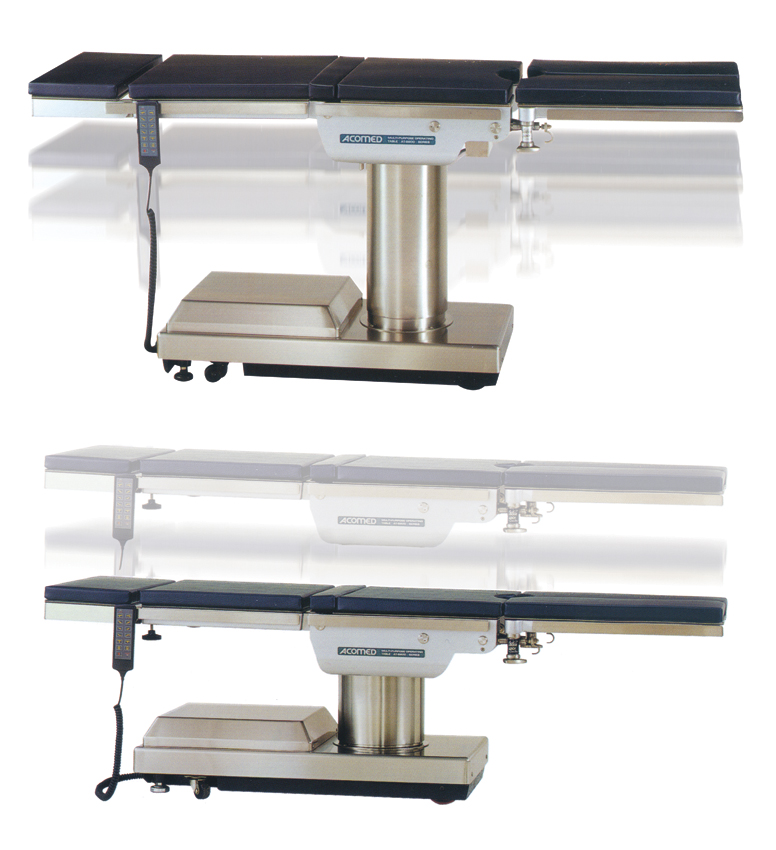

  N: Lowest position (54 cm)
  P: Highest position (150 cm)

  AT-6700 □ □ □ □ □

• The specifications can be manufactured by order
• All the models are motorized brake
• 2 ~ 5 are controlled by electric-hydraulic system, 6 ~ 8 must be done by manual
• Standard type and R type load: 500VA; controller  voltage: DC24V
• AC / DC type (B type) and RB type is 350VA, all inside are DC24V, controller is DC5V
• R type, B type, and RB type's other functions

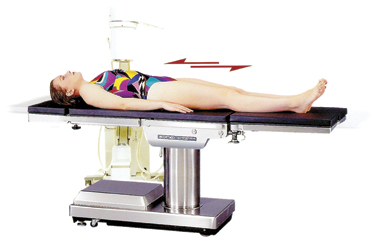

• For AT-6700n/ p type: the sliding function (30cm) is option available
• If the unit is equipped with the sliding function, the elevation must be added 7cm and the back section range is 90° ~ -30°
